NX NKX NKXR series

[ Shanghai Oupan Bearing Co.,LTD clicks： ]

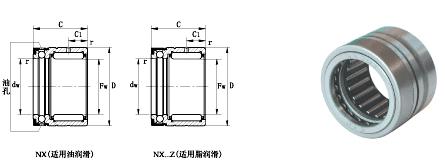

NX NX...Z series

Description:

1 the basic load, limit speed and weight in the table are listed for reference only.
2 if bearing cage made of plastic, suffix TN added after model. allowed working temperature: 120℃ for continuous and 180 ℃ for short term.
3 the limit speed is 60% of the table column value when bearing is grease lubricated.

Shaft Dia. mm	Bearing No.		Dimensions (mm)						Basic Load Ratings (KN)				Limit Speed (rpm)	inventory
	Oil Lubricated	Grease Lubricated	Fw	D	c ±0.25	C1	dw	rs min.	Radial		Axial
	Oil Lubricated	Grease Lubricated	Fw	D	c ±0.25	C1	dw	rs min.	Cr	Cor	Cr	Cor
7	NX7TN	NX7ZTN	7	14	12	4.7	7	0.3	2.25	3	3.15	4.3	15000	√
10	NX10	NX10Z	10	19	12	4.7	10	0.3	4.45	4	4.6	7.2	11000	√
12	NX12	NX12Z	12	21	12	4.7	12	0.3	4.2	4	4.25	2.2	9500	√
15	NX15	NX15Z	15	24	22	2	15	0.3	10.7	13	5.6	10.4	8000	√
17	NX17	NX17Z	17	26	22	2	17	0.3	11.9	15	5.2	11.5	7500	√
20	NX20	NX20Z	20	30	22	2	20	0.3	13	12	7	14.7	6500	√
25	NX25	NX25Z	25	37	30	2	25	0.3	14.9	22	11.1	24.3	4900	√
30	NX30	NX30Z	30	42	30	10	30	0.3	22.6	36	11.7	22	4300	√
35	NX35	NX35Z	35	47	30	10	35	0.3	24.3	42	12.4	32.5	3700	√

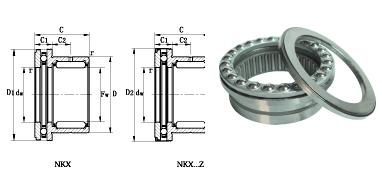

NKX NKX...Z series

Shaft Dia. mm	Bearing No.	Bearing No. with Dust Shield	Dimensions (mm)									Basic Load Ratings (KN)				Limit Speed rpm	inventory
			Dimensions (mm)									Radial		Axial
			Fw	D	D1 max.	D2 max	C -0.25	C1 -0.2	C2	dw E8	rs min.	Cr	Cor	Cr	Cor
10	NKX10TN	NKX10ZTN	10	19	24.1	25.2	23	9	6.5	10	0	6.2	7.2	10	14	12000	√
12	NKX12	NKX12Z	12	21	26.1	27.2	23	9	6.5	12	0	9	11	10.3	15.4	11000	√
15	NKX15	NKX15Z	15	24	28.1	29.2	23	9	6.5	15	0	10.7	12.7	10.5	16.2	9500	√
17	NKX17	NKX17Z	17	26	30.1	31.2	25	9	8	17	0	11.9	15	10.2	12.2	8500	√
20	NKX20	NKX20Z	20	30	35.1	36.2	30	10	11	20	0	16.4	23.8	14.3	24.7	7500	√
25	NKX25	NKX25Z	25	37	42.1	43.2	30	11	9.5	25	1	18.8	30.5	19.6	37.5	6000	√
30	NKX30	NKX30Z	30	42	47.1	48.2	30	11	9.5	30	1	22.6	36	20.4	42	5000	√
35	NKX35	NKX35Z	35	47	52.1	53.2	30	12	9	35	1	24.3	41.5	21.2	47	4600	√
40	NKX40	NKX40Z	40	52	60.1	61.2	32	13	10	40	1	26	47	27	63	4000	√
45	NKX45	NKX45Z	45	58	65.2	66.5	32	14	9	45	1	27.5	53	22	69	3600	√
50	NKX50	NKX50Z	50	62	70.2	71.5	35	14	10	50	1	32	74	29	75	3300	√
60	NKX60	NKX60Z	60	72	25.2	26.5	40	17	12	60	1	42	90	41.5	113	2800	√
70	NKX70	NKX70Z	70	25	95.2	96.5	40	12	11	70	1	44.5	92	43	127	2400	√

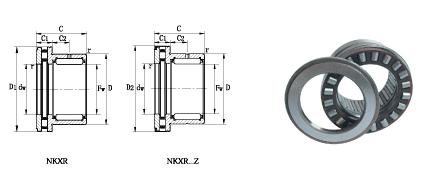

NKXR NKXR...Z series

Description:
1 the basic load, limit speed and weight in the table are listed for reference only.
2 if bearing cage made of plastic, suffix TN added after model. allowed working temperature: 120℃ for continuous and 180 ℃ for short term.
3 the limit speed is 60% of the table column value when bearing is grease lubricated.

Shaft Dia. mm	Bearing No.	Bearing No. with Dust Shield	Dimensions (mm)									Basic Load Ratings (KN)				Limit Speed rpm	inventory
			Dimensions (mm)									Radial		Axial
			Fw	D	D1 max.	D2 max	C -0.25	C1 -0.2	C2	dw E8	rs min.	Cr	Cor	Cr	Cor
15	NKXR15	NKXR15Z	15	24	28.1	29.2	23	9	6.5	15	0	10.7	12.7	14.4	28.5	13000	√
17	NKXR17	NKXR17Z	17	26	30.1	31.2	25	9	8	17	0	11.9	15	15.9	33.5	12000	√
20	NKXR20	NKXR20Z	20	30	35.1	36.2	30	10	11	20	0	16.4	23.8	24.9	53	10000	√
25	NKXR25	NKXR25Z	25	37	42.1	43.2	30	11	9.5	25	1	18.8	30.5	33.5	76	8500	√
30	NKXR30	NKXR30Z	30	42	47.1	48.2	30	11	9.5	30	1	22.6	36	35.5	86	7500	√
35	NKXR35	NKXR35Z	35	47	52.1	53.2	30	12	9	35	1	24.3	41.5	39	101	6500	√
40	NKXR40	NKXR40Z	40	52	60.1	61.2	32	13	10	40	1	26	47	56	148	6000	√
45	NKXR45	NKXR45Z	45	58	65.2	66.5	32	14	9	45	1	27.5	53	59	163	5000	√
50	NKXR50	NKXR50Z	50	62	70.2	71.5	35	14	10	50	1	32	74	61	177	4800	√
