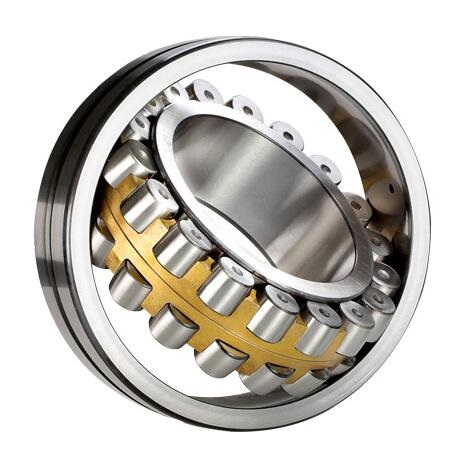

Spherical roller bearing has two raceways in the inner ring and one spherical raceway in the outer ring, assembly of drum-shaped rollers. It mainly bear radial load, but also can withstand axial load in either direction. with high radial load capacity, especially suitable for heavy work loads or vibration, but can not afford pure axial load. This kind of bearing outer ring raceway is spherical shape, so it's good aligning performance, can compensate concentricity error.

Features:
low revolution speed
impact resistance
vibration resistance

Structure type:
cylindrical bore
tapered bore: suffix K (taper 1:12)   suffix K30 (taper 1:30)

Suffix:
N: bearing has a locking groove on outer ring
W33: bearing has annular oil groove on the outer ring and three equally-distributed oilholes.
S0: working temperature can reach 150°
S1: working temperature can reach 200°
S2: working temperature can reach 250°
S3: working temperature can reach 300°
S4: working temperature can reach 350°

Retainer:
Sheet steel reinforced cage (suffix E).
sheet steel cage (suffix CC,C)
glass fiber reinforced polyamide 66 cage (suffix TVPB)
two-piece machined brass cages (suffix MB).
Integral machined brass cages (suffix CA)
vibration occasions stamping steel cage (suffix JPA).
Vibratory applications brass cage (suffix EMA)
nylon cage (suffix CTN1)
bronze cage (suffix Q)

Main application:
Papermaking machinery, deceleration device, railway vehicle axle, rolling mill gear box bearing, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machinery, various industrial reducer, vertical seat-aligning bearing .

Series:
213
222
223
230
231
232
239
240
241
