SA200 SB200
[ Shanghai Oupan Bearing Co.,LTD clicks： ]

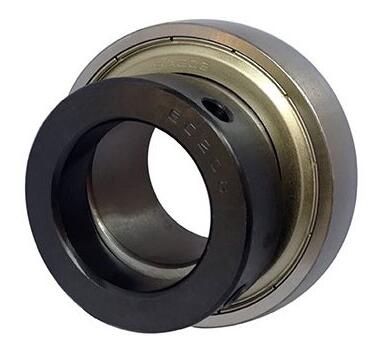

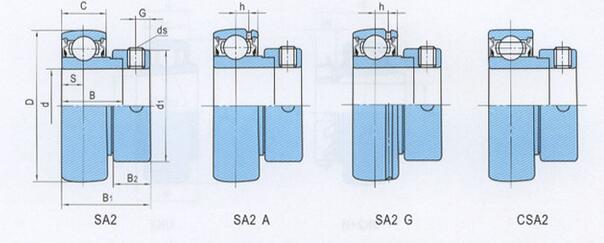

SA200
|
Bearing No |
Shaft Dia. |
Dimensions (mm/in.) |
Cr |
Cor |
wei |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
d |
|||||||||||||||
|
in. |
mm |
D |
B1 |
B |
C |
S |
d1 |
B2 |
h |
G |
ds |
||||
|
SA 201 |
|
12 |
40 |
28.5 |
19 |
12 |
6.0 |
28.6 |
13.5 |
3.4 |
5.0 |
M6 |
9.5 |
4.7 |
0.12 |
|
201-8 |
1/2 |
|
1.5748 |
1.1220 |
0.7480 |
0.4724 |
0.2362 |
1.1260 |
0.5315 |
0.1338 |
0.1968 |
1/4-28UNF |
0.26 |
||
|
SA 202 |
|
15 |
40 |
28.5 |
19 |
12 |
6.0 |
28.6 |
13.5 |
3.4 |
5.0 |
M6 |
9.5 |
4.7 |
0.11 |
|
202-9 |
9/16 |
|
1.5748 |
1.1220 |
0.7480 |
0.4724 |
0.2362 |
1.1260 |
0.5315 |
0.1338 |
0.1968 |
1/4-28UNF |
0.24 |
||
|
202-10 |
5/8 |
|
|||||||||||||
|
SA 203 |
|
17 |
40 |
28.5 |
19 |
12 |
6.0 |
28.6 |
13.5 |
3.4 |
5.0 |
M6 |
9.5 |
4.7 |
0.10 |
|
203-11 |
11/16 |
|
1.5748 |
1.1220 |
0.7480 |
0.4724 |
0.2362 |
1.1260 |
0.5315 |
0.1338 |
0.1968 |
1/4-28UNF |
0.22 |
||
|
SA 204 |
|
20 |
47 |
29.5 |
20 |
14 |
7.0 |
33.3 |
13.5 |
4.0 |
5.0 |
M6 |
12.8 |
6.6 |
0.14 |
|
204-12 |
3/4 |
|
1.8504 |
1.1614 |
0.7874 |
0.5512 |
0.2756 |
1.3110 |
0.5315 |
0.1575 |
0.1968 |
1/4-28UNF |
0.31 |
||
|
SA 205 |
|
25 |
52 |
31.0 |
21.5 |
15 |
7.5 |
38.1 |
13.5 |
4.2 |
5.0 |
M6 |
14.0 |
7.8 |
0.20 |
|
205-14 |
7/8 |
|
2.0472 |
1.2205 |
0.8464 |
0.5906 |
0.2953 |
1.5000 |
0.5315 |
0.1654 |
0.1968 |
1/4-28UNF |
0.44 |
||
|
205-15 |
15/16 |
|
|||||||||||||
|
205-16 |
1 |
|
|||||||||||||
|
SA 206 |
|
30 |
62 |
33.9 |
22 |
16 |
8.0 |
44.5 |
15.9 |
4.8 |
6.0 |
M8 |
19.4 |
11.2 |
0.29 |
|
206-17 |
1-1/16 |
|
2.4409 |
1.3346 |
0.8661 |
0.6299 |
0.3150 |
1.7520 |
0.6260 |
0.1890 |
0.2362 |
5/16-24UNF |
0.64 |
||
|
206-18 |
1-1/8 |
|
|||||||||||||
|
206-19 |
1-3/16 |
|
|||||||||||||
|
206-20 |
1-1/4 |
|
|||||||||||||
|
SA 207 |
|
35 |
72 |
37.5 |
24 |
17 |
8.5 |
55.6 |
17.5 |
5.4 |
6.5 |
M8 |
25.6 |
15.2 |
0.46 |
|
207-20 |
1-1/4 |
|
2.8346 |
1.4764 |
0.9449 |
0.6693 |
0.3346 |
2.1890 |
0.6890 |
0.2126 |
0.2559 |
5/16-24UNF |
1.01 |
||
|
207-21 |
1-5/16 |
|
|||||||||||||
|
207-22 |
1-3/8 |
|
|||||||||||||
|
207-23 |
1-7/16 |
|
|||||||||||||
|
SA 208 |
|
40 |
80 |
40.5 |
27 |
18 |
9.0 |
60.3 |
18.3 |
5.9 |
6.5 |
M10 |
32.6 |
19.6 |
0.62 |
|
208-24 |
1-1/2 |
|
3.1496 |
1.5945 |
1.0630 |
0.7087 |
0.3543 |
2.3740 |
0.7205 |
0.2323 |
0.2559 |
3/8-24UNF |
1.36 |
||
|
208-25 |
1-9/16 |
|
|||||||||||||

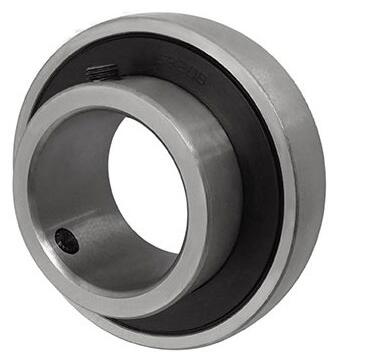

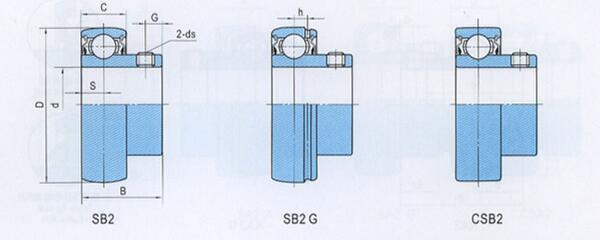

SB200
|
Bearing No |
Shaft Dia. |
Dimensions (mm/in.) |
Cr |
Cor |
wei |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
d |
||||||||||||
|
in. |
mm |
D |
B |
C |
S |
G |
h |
ds |
||||
|
SB 201 |
|
12 |
40 |
22 |
12 |
6.0 |
3.4 |
4.0 |
M5X0.8 |
9.5 |
4.7 |
0.10 |
|
201-8 |
1/2 |
|
1.5748 |
0.8661 |
0.4724 |
0.2362 |
0.1338 |
0.1575 |
10-32UNF |
0.22 |
||
|
SB 202 |
|
15 |
40 |
22 |
12 |
6.0 |
3.4 |
4.0 |
M5X0.8 |
9.5 |
4.7 |
0.09 |
|
202-9 |
9/16 |
|
1.5748 |
0.8661 |
0.4724 |
0.2362 |
0.1338 |
0.1575 |
10-32UNF |
0.20 |
||
|
202-10 |
5/8 |
|
||||||||||
|
SB 203 |
|
17 |
40 |
22 |
12 |
6.0 |
3.4 |
4.0 |
M5X0.8 |
9.5 |
4.7 |
0.08 |
|
203-11 |
11/16 |
|
1.5748 |
0.8661 |
0.4724 |
0.2362 |
0.1338 |
0.1575 |
10-32UNF |
0.18 |
||
|
SB 204 |
|
20 |
47 |
25 |
14 |
7.0 |
4.0 |
5.0 |
M6X0.75 |
12.8 |
6.6 |
0.13 |
|
204-12 |
3/4 |
|
1.8504 |
0.9842 |
0.5512 |
0.2756 |
0.1575 |
0.1968 |
1/4-28UNF |
0.27 |
||
|
SB 205 |
|
25 |
52 |
27 |
15 |
7.5 |
4.2 |
5.5 |
M6X0.75 |
14.0 |
7.8 |
0.17 |
|
205-14 |
7/8 |
|
2.0472 |
1.0630 |
0.5906 |
0.2953 |
0.1654 |
0.2615 |
1/4-28UNF |
0.37 |
||
|
205-15 |
15/16 |
|
||||||||||
|
205-16 |
1 |
|
||||||||||
|
SB 206 |
|
30 |
62 |
30 |
16 |
8.0 |
4.8 |
6.0 |
M6X0.75 |
19.4 |
11.2 |
0.26 |
|
206-17 |
1-1/16 |
|
2.4409 |
1.1811 |
0.6299 |
0.3150 |
0.1890 |
0.2362 |
1/4-28UNF |
0.57 |
||
|
206-18 |
1-1/8 |
|
||||||||||
|
206-19 |
1-3/16 |
|
||||||||||
|
206-20 |
1-1/4 |
|
||||||||||
|
SB 207 |
|
35 |
72 |
32 |
17 |
8.5 |
5.4 |
6.5 |
M8X1 |
25.6 |
15.2 |
0.38 |
|
207-20 |
1-1/4 |
|
2.8346 |
1.2598 |
0.6693 |
0.3346 |
0.2126 |
0.2559 |
5/16-24UNF |
0.84 |
||
|
207-21 |
1-5/16 |
|
||||||||||
|
207-22 |
1-3/8 |
|
||||||||||
|
207-23 |
1-7/16 |
|
||||||||||
|
SB-208 |
|
40 |
80 |
34 |
18 |
9.0 |
5.9 |
8.0 |
M8X1 |
32.6 |
19.8 |
0.50 |
|
208-24 |
1-1/2 |
|
3.1496 |
1.3386 |
0.7087 |
0.3543 |
0.2323 |
0.3150 |
5/16-24UNF |
1.10 |
||
|
208-25 |
1-9/16 |
|
||||||||||
